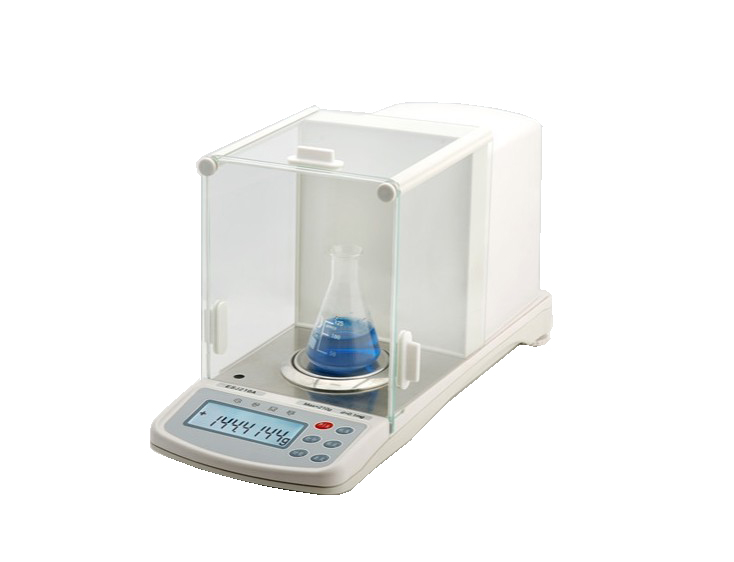

Electronic Balance
*30g/0.01mg Weighing Scale
*Internal-Calibration,LCD
*RS232,Electromagnetic Force
*Dia:9cm,Quick Response
Rear electromagnetic sensor, three-door draft shield - large weighing room.
Automatic internal calibration, automatic timing calibration, temperature automatic calibration.
LCD display, brightness display could be set up according to environment.
Overload/ underload alarm, temperature compensation, full range tare , accumulate/decrement, material density measurement available(Optional density device).
RS232 Output interface, can be connected with computers or printers.
Widely used in measurement, analysis and education of scientific research, medical, Chemical, metallurgical and agricultural industries.
Fast weighing time, high accuracy, good stability and quality, simple operation, convenient to maintenance, and be able to connected with computer and printer which will improve working efficiency.
|
Balance Specification |
ESJ120-4A |
ESJ200-4A |
ESJ210-4A |
ESJ220-4A |
|
Max capacity |
120g |
200g |
210g |
220g |
|
Readability |
0.0001g |
|||
|
Repeatability |
≤±0.0001g |
|||
|
Linearity Error |
≤±0.0002g |
|||
|
Loading Error(Corners) |
≤±0.0002g |
|||
|
Discrimination |
1.4d |
|||
|
Sensitivity Drift |
±2ppm/℃ |
|||
|
Clock Drift |
±0.0010g |
|||
|
Stabilization Time |
≤5s |
|||
|
Working Temperature |
10℃~45℃ |
|||
|
Atmospheric Humidity |
20%RH~85%RH |
|||
|
Power supply |
AC 220V（-15%~+10%）50Hz Power Consumption≤20W |
|||
|
Calibration |
Automatic Internal calibration |
|||
|
Calibration Weights |
Equipped F1 calibration weight |
|||
|
Tare Range |
Full Range |
|||
|
Display |
LCD |
|||
|
Pan Size |
Φ90mm |
|||
|
Balance Dimensions |
460×205×280 |
|||
|
Draft Shield Dimensions |
190×155×210 |
|||
|
Net Weight |
9kg |
|||
|
Gross Weight |
10.5kg |
|||
|
Package size |
570×375×450 |
|||
|
Second Package size |
580×400×490 |
|||
|
Bottom Hook |
Optional |
|||
|
Output Interface |
RS232C |
|||
|
Weight Unit |
Gram |
|||
|
Optional weight units |
Gram/Carat/Pound/Ounce |
|||
|
Counting |
Yes |
|||
|
Weighing in Percent |
Yes |
|||
|
Animal Weighing |
Yes |
|||
|
Solid Density Mode |
Customizable |
|||
|
Printouts |
Time, S/N, Values |
|||
