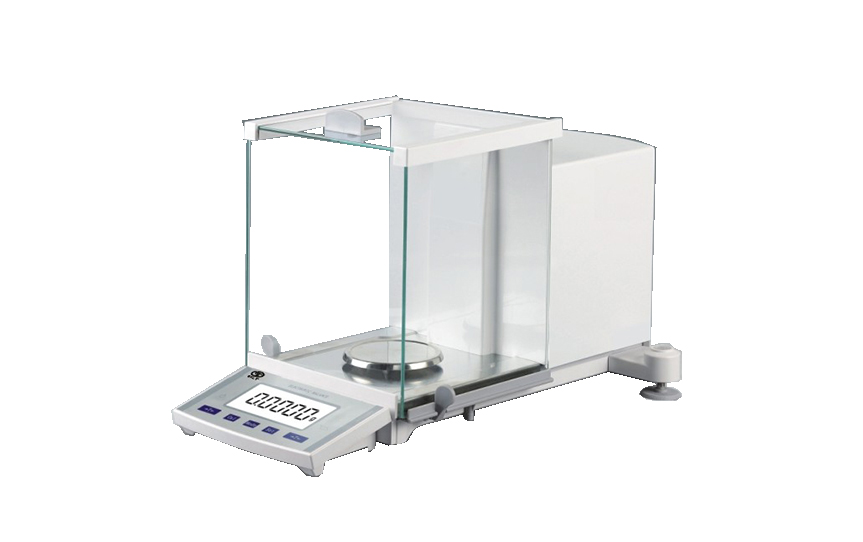

Automatic Analytical Balance
| Accuracy: | 0.1mg |
|---|---|
| Usage: | General Balance, Analytical Balance |
| Load: | 120g, 200g, 210g, 220g |
| Display Type: | LED |
| Type: | General Signs Balance |
Rear electromagnetic sensor, three-door draft shield, large weighing room.
Equipped Non-magnetic stainless steel calibration mass, could be calibrated at any time.
LCD display, could set up brightness according to environment.
Overload/underload alarm, temperature compensation, full range tare, accumulate/decrement, material density measurement available(Optional density device).
RS232 output interface, can be connected with computers or printers.
Widely used in measurement, analysis and education of scientific research, medical, Chemical, metallurgical and agricultural industries.
Fast weighing time, high accuracy, good stability and quality, simple operation, convenient to maintenance, and be able to connected with computer and printer which will improve working efficiency.
|
Balance Specification |
ESJ120-4B |
ESJ200-4B |
ESJ210-4B |
ESJ220-4B |
|
Maximum Weighing |
120g |
200g |
210g |
220g |
|
Minimum Readability |
0.0001g |
|||
|
Repeatability |
≤±0.0001g |
|||
|
Linearity Error |
≤±0.0002g |
|||
|
Loading Error(Corners) |
≤±0.0002g |
|||
|
Discrimination |
1.4d |
|||
|
Sensitivity Drift |
±2ppm/℃ |
|||
|
Clock Drift |
±0.0010g |
|||
|
Stabilization Time |
≤5s |
|||
|
Working Temperature |
10℃~45℃ |
|||
|
Atmospheric Humidity |
20%RH~85%RH |
|||
|
Power |
AC 220V（-15%~+10%）50Hz Power Consumption≤20W |
|||
|
Calibration |
Automatic Calibration(Place Calibration Mass by hand） |
|||
|
Calibration Mass |
Standard Weights（Class F1） |
|||
|
Tare Range |
Full Range |
|||
|
Display |
LCD |
|||
|
Pan size |
Φ90mm |
|||
|
Balance Dimensions |
460×205×280 |
|||
|
Draft Shield Dimensions |
190×155×210 |
|||
|
Net Weight |
9kg |
|||
|
Gross Weight |
10.5kg |
|||
|
Package size |
570×375×450 |
|||
|
Second Package size |
580×400×490 |
|||
|
Bottom Hook |
Optional |
|||
|
Output Interface |
RS232C |
|||
|
Weight Unit |
gram |
|||
|
Optional Weight Unit |
Gram/Carat/Pound/Ounce |
|||
|
Counting Function |
Yes |
|||
|
Weighing in Percent |
Yes |
|||
|
Animal Weighing |
Customizable |
|||
|
Solid Density Mode |
Customizable |
|||
