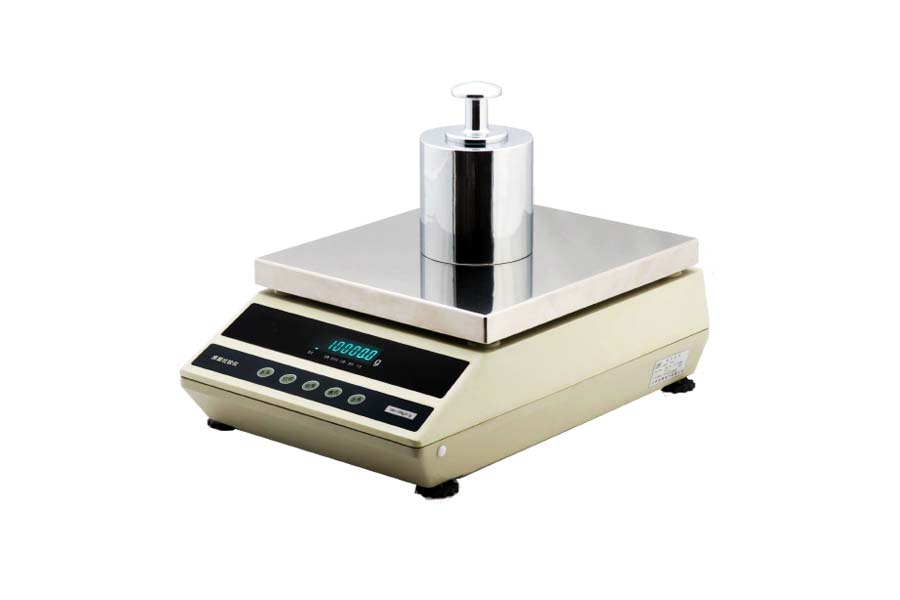

The most accurate electronic balance with complete specifications which is widely used in industrial measurement and the verification of cast iron weights.
Electromagnetic sensor, accurate and reliable, fast weighing time.
With multiple weighing method and weighing unit.
RS232 output interface, can be connected with computers or printers.
Widely used in industrial measurement, weights calibration, and also testing for special metal alloys, special parts, production etc.
With advanced technology and imported key element, the balances have advantages on fast weighing, high accuracy, good stability and quality, simple operation, convenient to maintenance, and be able to connected with computer and printer which will improve working efficiency.
| ESK×1 | ESK-1 | ESK-2 | ESK-15 | ||||||||||||
| Balance Model | ES20K×1D | ES30K×1D | ES40K×1D | ES50K×1D | ES60K×1D | ES10K-1D | ES20K-1D | ES30K-1D | ES40K-1D | ES50K-1D | ES10K-2D | ES20K-2D | ES20K-15D | ES30K-15D | ES50K-15D |
| Max capacity | 20kg | 30kg | 40kg | 50kg | 60kg | 10kg | 20kg | 30kg | 40kg | 50kg | 10kg | 20kg | 20kg | 30kg | 50kg |
| Readability（d） | 1g | 0.1g | 0.01g | 0.5g | |||||||||||
| Repeatability | ≤±1g | ≤±0.1g | ≤±0.01g | ≤±0.5g | |||||||||||
| Linearity Error | ≤±2g | ≤±0.2g | ≤±0.02g | ≤±1g | |||||||||||
| Loading Error(Corners) | ≤±2g | ≤±0.2g | ≤±0.02g | ≤±1g | |||||||||||
| Discrimination | 1.4d | 1.4d | 1.4d | 1.4d | |||||||||||
| Sensitivity Drift | ±2ppm/℃ | ±2ppm/℃ | ±2ppm/℃ | ±2ppm/℃ | |||||||||||
| Clock Drift | ±1g | ≤±0.1g | ≤±1g | ≤±1g | |||||||||||
| Stabilization Time | ≤5s | ||||||||||||||
| Working Temperature | 10℃~45℃ | ||||||||||||||
| Atmospheric Humidity | 20%RH~85%RH | ||||||||||||||
| Power supply | AC 220V（-15%~+10%）50Hz Power Consumption≤20W | ||||||||||||||
| Calibration | Automatic Calibration(Place Calibration Mass） | ||||||||||||||
| Calibration Mass | Optional | ||||||||||||||
| Tare Range | Full Range | ||||||||||||||
| Display | LCD / VFD | ||||||||||||||
| Pan Size | 340×300 | ||||||||||||||
| Balance Dimensions | 460×315×160 | ||||||||||||||
| Net Weight | 17kg | ||||||||||||||
| Gross Weight | 19kg | ||||||||||||||
| Package size | 560×470×275 | ||||||||||||||
| Bottom Hook | Optional | ||||||||||||||
| Output Interface | RS232C | ||||||||||||||
| Weight Unit | Gram | ||||||||||||||
| Optional Weight Unit | Gram/Carat/Pound/Ounce | ||||||||||||||
| Counting | Yes | ||||||||||||||
| Weighing in Percent | Yes | ||||||||||||||
| Animal Weighing | Customizable | ||||||||||||||
| Solid Density Mode | Customizable | ||||||||||||||
