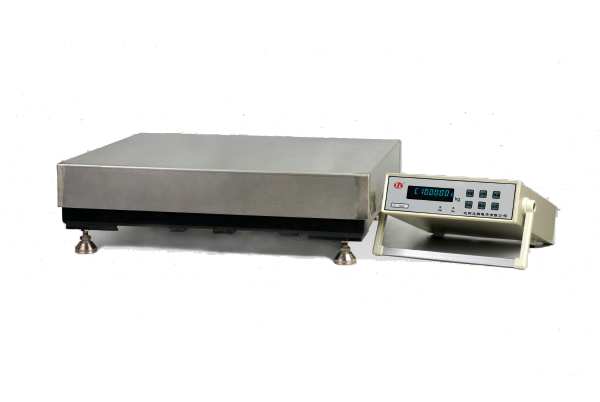

Mass comparator 100kg-5000kg

Features and Specifications
Application
Advantages
Parameter

Features and Specifications

Unique large-scale electronic balance, with capacity 2000kg, electromagnetic sensor, high-accuracy, full model, can be designed according to user requirements.

Application

Usually used in calibration of heavy weights, and also can be used in the military, aerospace and aviation industries. This product has been used in the weighing and development of Shenzhou-6.

Advantages

High precision, complete specifications, design according to user requirements

Parameter

	100-500kg					1ton-2tons			2-5ton
Balance Model	ES100K×1	ES200K×2	ES500K×2	ES300K×5	ES500K×5	ES1000K×5	ES1000K×10	ES2000K×10	ES1000K×5	ES1000K×10	ES2000K×10
Max capacity	100kg	200kg	500kg	300kg	500kg	1000kg	1000kg	2000kg	2000kg	3000kg	5000kg
Readability（d）	1g	2g	2g	5g	5g	5g	10g		20g	30g	50g
Repeatability	≤±1g	≤±2g	≤±2g	≤±5g	≤±5g	≤±5g	≤±10g		≤±20g	≤±30g	≤±50g
Linearity Error	≤±2g	≤±4g	≤±4g	≤±10g	≤±10g	≤±10g	≤±20g		≤±20g	≤±30g	≤±100g
Loading Error(Corners)	≤±2g	≤±4g	≤±4g	≤±10g	≤±10g	≤±10g	≤±20g		≤±40g	≤±60g	≤±100g
Discrimination	1.4d
Sensitivity Drift	±2ppm/℃
Stabilization Time	≤5s
Working Temperature	10℃~45℃
Atmospheric Humidity	20%RH~85%RH
Power supply	AC 220V（-15%~+10%）50Hz Power Consumption≤20W
Calibration	Automatic Calibration (place calibration mass by hand)
Calibration Mass	Optional
Tare Range	Full Range
Display	LCD / VFD
Pan Size	620×620	550×500	850×750	650×600	850×750	1200×1000			1200×1000
Balance Dimensions			850×750×230		850×750×230	1200×1000×550			1200×1000×550
Output Interface	RS232C
Weight Unit	Kilogram
Optional Weight Unit	Gram/Carat/Pound/Ounce
