Brand: JAJA
If you’re weighing hazardous liquids, solids or gases, the complete line of explosion-proof scales can satisfy most of these stringent requirements. Because the balance is intrinsically safe there is no need for a bulky containment housing for most installations.
Explosion-proof code : Ex dⅡBT4 Gb Product Standards: Q/BXCJ001-2015 Equipped
High-accuracy electromagnetic sensor

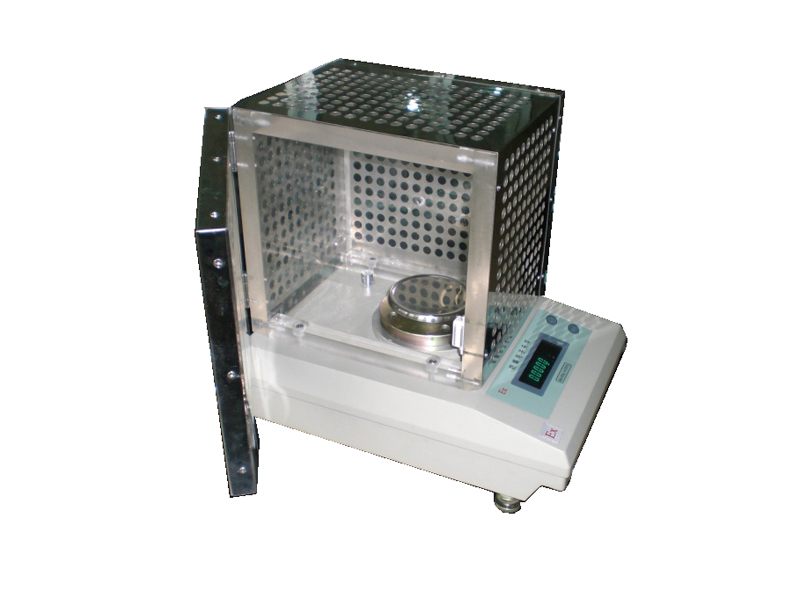

microcomputer-controlled electronic precision weighing device specially used in production site of explosion and deflagration.
Explosion-proof electronic balances can be widely used in the manufacture of fire, explosives and pyrotechnics in the weapons industry, in the assembly of explosives, in the detection of weighing, in the development of aerospace rockets and in the production of civil explosive equipment. It is an essential weighing and explosion-proof measuring instrument for automatic, efficient, precise and safe measurement.
High precision and stability, Easy to use and operate.
|
Balance Model |
FBA200-3 |
FBA300-3 |
FBA500-3 |
FBA1000-3 |
FBA200-4 |
FBA220-4 |
|
Max capacity |
200g |
300g |
500g |
1000g |
200g |
220g |
|
Readability（d） |
0.001g |
0.0001g |
||||
|
Repeatability |
≤±0.001g |
≤±0.0001g |
||||
|
Linearity Error |
≤±0.002g |
≤±0.0002g |
||||
|
Loading Error |
≤±0.002g |
≤±0.0002g |
||||
|
Discrimination |
|
1.4d |
||||
|
Sensitivity Drift |
±2ppm/℃ |
|||||
|
Clock Drift |
≤±0.01g |
≤±0.001g |
||||
|
Explosion-proof Grade |
Ex dIIBT4 Gb |
|||||
|
Stabilization Time |
≤5s |
|||||
|
Working Temperature |
10℃~45℃ |
|||||
|
Atmospheric Humidity |
20%RH~85%RH |
|||||
|
Power supply |
AC 220V（-15%~+10%）50Hz Power Consumption≤20W |
|||||
|
Calibration |
Automatic Calibration (place calibration mass by hand) |
|||||
|
Calibration Mass |
Standard Calibration Mass |
Optional |
Standard Calibration Mass |
|||
|
Tare Range |
Full Range |
|||||
|
Display |
VFD |
|||||
|
Pan Size |
Φ90mm |
|||||
|
Output Interface |
RS232C Optional |
|||||
|
Weight Unit |
Gram |
|||||
