Explosion-proof balance applicated in special industry requirements for safty.
Through the use of special components, materials, ratings and component layouts, all electric circuits and inter-connected cables are designed sot that
a) no spark or
b) thermal effect is capable of causing ignition under fault conditions.
Explosion-proof code: Ex dⅡBT4 Gb
Product Standards: Q/BXCJ001-2015

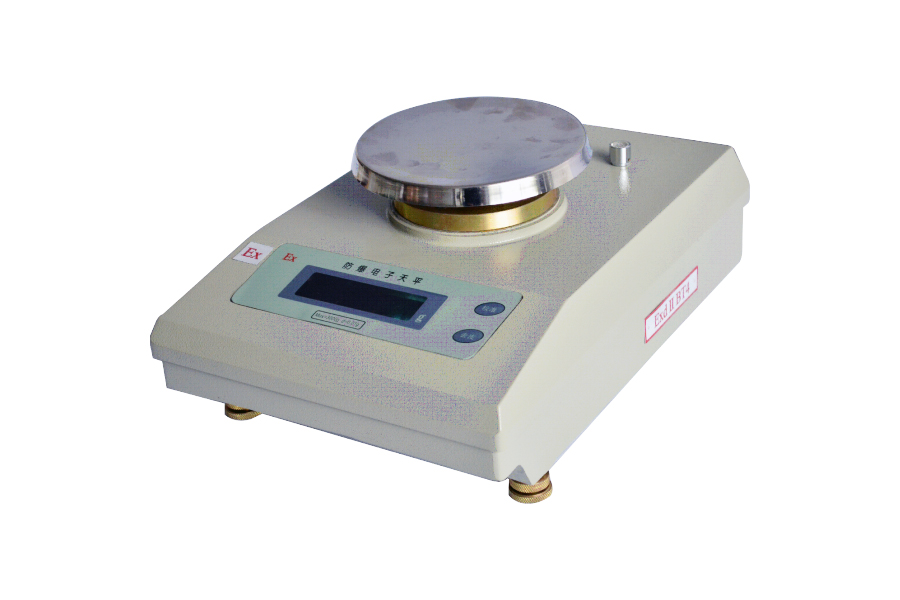

Equipped high-accuracy electromagnetic sensor, the balance is a microcomputer-controlled electronic precision weighing device specially used in production site of explosion and deflagration.
Explosion-proof electronic balances can be widely used in the manufacture of fire, explosives and pyrotechnics in the weapons industry, in the assembly of explosives, in the detection of weighing, in the development of aerospace rockets and in the production of civil explosive equipment. It is an essential weighing and explosion-proof measuring instrument for automatic, efficient, precise and safe measurement.
Easy, User-Friendly Operation
|
Balance Model |
FBA2K-2 |
FBA3K-2 |
FBA5K-2 |
FBA6K-1 |
|
Max capacity |
2000g |
3000g |
5000g |
6000g |
|
Readability（d） |
0.01g |
0.1g |
||
|
Repeatability |
≤±0.01g |
≤±0.1g |
||
|
Linearity Error |
≤±0.02g |
≤±0.2g |
||
|
Loading Error |
≤±0.02g |
≤±0.2g |
||
|
Discrimination |
1.4d |
|||
|
Sensitivity Drift |
±2ppm/℃ |
|||
|
Clock Drift |
≤±0.2g |
|||
|
Explosion-proof Grade |
Ex dIIBT4 Gb |
|||
|
Stabilization Time |
≤5s |
|||
|
Working Temperature |
10℃~45℃ |
|||
|
Atmospheric Humidity |
20%RH~85%RH |
|||
|
Power supply |
DC15V 1A AC 220V（-15%~+10%）50Hz Power Consumption≤20W |
|||
|
Calibration |
Automatic Calibration (place calibration mass by hand) |
|||
|
Tare Range |
Full Range |
|||
|
Display |
Blue VFD |
|||
|
Pan Size |
Φ160mm |
|||
|
Output Interface |
RS232C Optional |
|||
|
Weight Unit |
Gram |
|||
