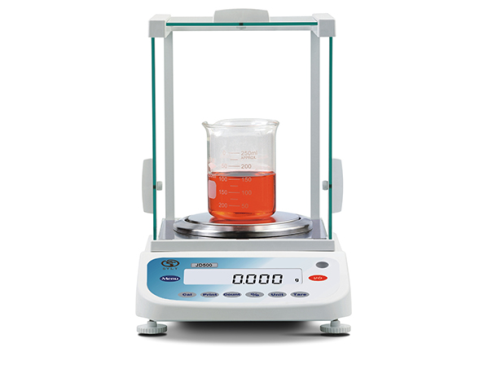

Under-mounted electromagnetic sensor, ultra-thin shape, three-door draft shield, large weighing room.
Equipped Non-magnetic stainless steel calibration mass, could be calibrated at any time.
VFD / LCD display.
Overload/underload alarm, temperature compensation, full range tare, accumulate/decrement, bottom hook weighing (Optional density device).
RS232 output interface, can be connected with computers or printers.
Widely used in measurement, analysis and education of scientific research, medical, Chemical, metallurgical and agricultural industries.
Fast weighing time, high accuracy, good stability and quality, simple operation, convenient to maintenance, and be able to connected with computer and printer which will improve working efficiency.
|
Balance Specification |
JD110-4 |
JD200-4 |
JD210-4 |
JD220-4 |
|
Max capacity |
110g |
200g |
210g |
220g |
|
Readability（d） |
0.0001g |
|||
|
Repeatability |
≤±0.0002g |
|||
|
Linearity Error |
≤±0.0003g |
|||
|
Loading Error(Corners) |
≤±0.0003g |
|||
|
Sensitivity Drift |
±2ppm/℃ |
|||
|
Clock Drift |
±0.001g |
|||
|
Stabilization Time |
≤5s |
|||
|
Working Temperature |
10℃~45℃ |
|||
|
Atmospheric Humidity |
20%RH~85%RH |
|||
|
Power supply |
DC15V 1A Power Consumption≤20W |
|||
|
Calibration |
Automatic Calibration(Place Calibration Mass in Manual) |
|||
|
Calibration Mass |
Standard Calibration Mass F1 |
|||
|
Tare Range |
Full Range |
|||
|
Display |
LCD／VFD |
|||
|
Pan Size |
Φ90mm |
|||
|
Balance Dimensions |
335×205×295 |
|||
|
Draft Shield Dimensions |
175×175×185 |
|||
|
Net Weight |
6.6kg |
|||
|
Gross Weight |
8.1kg |
|||
|
Package size |
445×350×390 |
|||
|
Bottom Hook |
Optional |
|||
|
Output Interface |
RS232C |
|||
|
Weight Unit |
Gram |
|||
|
Optional Weight Unit |
Gram/Carat/Pound/Ounce |
|||
|
Counting |
Yes |
|||
|
Weighing in Percent |
Yes |
|||
|
Animal Weighing |
Customizable |
|||
|
Solid Density Mode |
Customizable |
|||
|
Printer Configuration |
Time, S/N, Values |
|||
