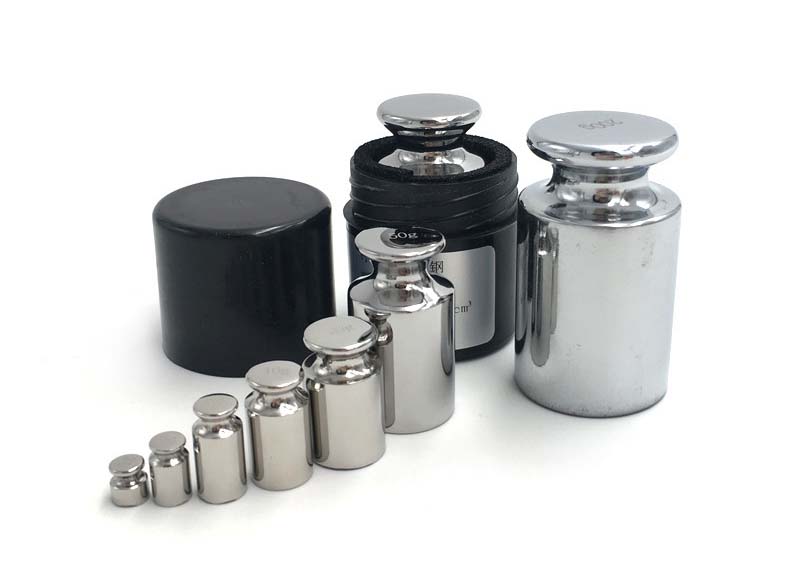

Individual/Single Weight 1g-5kg with plastic/ABS box
Class: E1 E2 F1 F2 M1
Material: Stainless Steel
Nominal Value: 1g-5kg
Package: ABS box, Aluminum Box
Calibration for scales, balances or other weighing products in Laboratories, Pharmaceutical Factories, Scales Factories, etc.
Stainless steel has the characteristics of resistance to weak corrosive media such as air, steam, water and chemical etching media such as acid, alkali and salt. The weight made with this material is also resistant to corrosion by corrosive media such as air, steam, water, and chemical etching media such as acid, alkali, and salt. It extends service life and improves the accuracy of weights.
Product Configurations:
Styles：Cylindrical
Process：Mirror/Mechanical polishing
Class：E1、E2、F1、F2、M1
Standard Individual Weights Range: 1g-50kg
| Nominal Value |
Diameter |
Height |
Material |
|
1g |
5 |
5 |
SS, Chrome plated |
|
2g |
5 |
10 |
SS, Chrome plated |
|
5g |
6 |
15 |
SS, Chrome plated |
|
10g |
9 |
18 |
SS, Chrome plated |
|
20g |
11 |
21 |
SS, Chrome plated |
|
50g |
15 |
31 |
SS, Chrome plated |
|
100g |
19 |
41 |
SS, Chrome plated |
|
200g |
23 |
49 |
SS, Chrome plated |
|
500g |
32 |
65 |
SS, Chrome plated |
|
1kg |
48 |
75 |
SS, Chrome plated |
|
2kg |
56 |
100 |
SS, Chrome plated |
|
5kg |
78 |
140 |
SS, Chrome plated |
|
Remarks: All dimensions are only for reference. Any dimensions subject to change without notice. |
|||
Dimensions of ABS Box：
|
Nominal Value |
Diameter |
Height |
Weight |
Material |
Color |
|
1g |
27 |
42 |
10.1 |
ABS |
WT/BK |
|
2g |
27 |
42 |
10.6 |
ABS |
WT/BK |
|
5g |
27 |
42 |
10.7 |
ABS |
WT/BK |
|
10g |
27 |
42 |
10.1 |
ABS |
WT/BK |
|
20g |
27 |
42 |
10.4 |
ABS |
WT/BK |
|
50g |
27 |
42 |
9.4 |
ABS |
WT/BK |
|
100g |
34.1 |
54.7 |
15.2 |
ABS |
WT/BK |
|
200g |
42.6 |
58.6 |
21.8 |
ABS |
WT/BK |
|
500g |
52.4 |
77.9 |
35 |
ABS |
WT/BK |
|
1kg |
63.8 |
97.5 |
56.6 |
ABS |
WT/BK |
|
2kg |
76.2 |
117.4 |
100 |
ABS |
WT/BK |
|
5kg |
97 |
162.7 |
216 |
ABS |
WT/BK |
|
Remarks: All dimensions are only for reference. Any dimensions subject to change without notice. |
|||||
