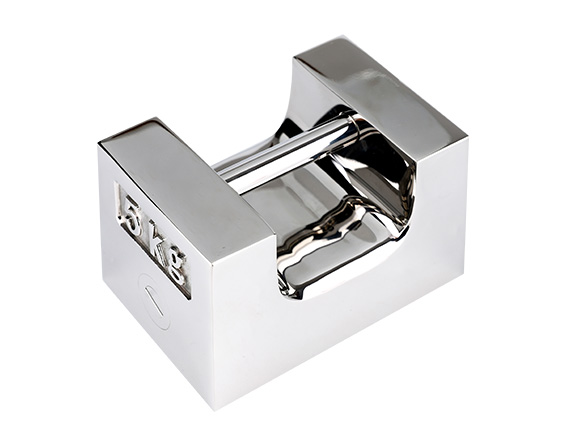

Industrial weight and laboratory, chemical, medical calibration weights, commercial for all kinds of scales such as analytical balance, floor scale, flat scale, weighing scale, forklift scales.
Nominal Value: 500g-20kg
Class: F2 M1
Material: Stainless Steel
Applicable Place: Laboratories, Pharmaceutical Factories, Scales Factories, etc. Applications：Calibration for scales, balances or other weighing products.
Stainless steel has the characteristics of resistance to weak corrosive media such as air, steam, water and chemical etching media such as acid, alkali and salt. The weight made with this material is also resistant to corrosion by corrosive media such as air, steam, water, and chemical etching media such as acid, alkali, and salt. It extends service life and improves the accuracy of weights.

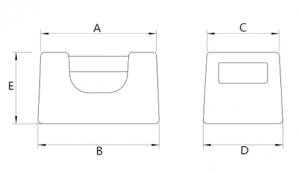

Dimensions information of casting types:
|
Nominal Value |
A |
B |
C |
D |
E |
|
500g |
60 |
63 |
37.5 |
41.5 |
37 |
|
1kg |
73 |
76 |
48 |
52.5 |
47 |
|
2kg |
91.5 |
96 |
60 |
66 |
58.5 |
|
5kg |
124 |
130 |
82 |
88 |
76 |
|
10kg |
151 |
160 |
101 |
110 |
105 |
|
20kg |
200 |
210 |
131 |
140 |
119 |
|
Remarks: All dimensions are only for reference. Any dimensions subject to change without notice. |
|||||
