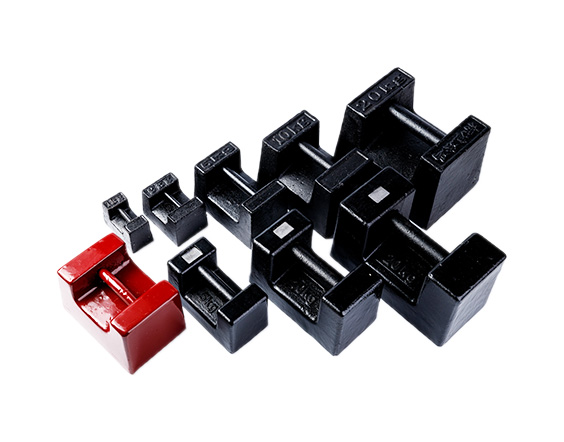

Cast iron weights: Each weight has an adjusting cavity located on it’s side or top.
OEM or cast company logo is available.
Competitive price makes cast iron weights attractive among customers all over the world
Material: Cast Iron
Class: M1/M2
Nominal Value: 5kg/10kg/20kg
Surface: Rusty free painting
Field standards for testing industrial devices; Testing for non-marked scales without class designation; Verifying scales are within specifed accuracy and tolerances； Application area: Elevator, Mixing Plant, Weigh Bridge and so on.
Grip-handle design for easy handling, competitive price
|

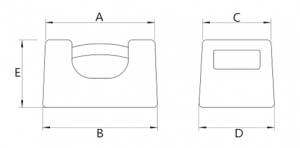

Nominal Value |
A |
B |
C |
D |
E |
|
5kg |
138 |
143 |
88 |
93 |
76 |
|
10kg |
153 |
165 |
104 |
113 |
106 |
|
20kg |
198 |
213 |
133 |
145 |
135 |
Refmark：All dimensions are only for reference.
