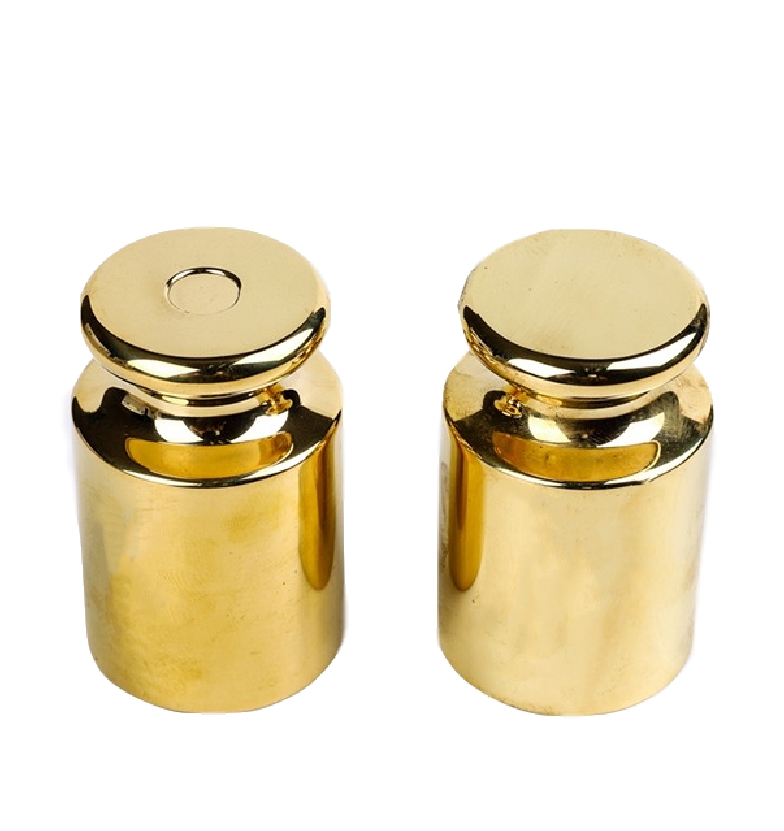

Cylindrical Brass Test Weight F1/F2/M1

Calibration weights are usually used in laboratory, chemical, medical or school education, commercial for all kinds of scales and balances.



Features and Specifications

Class: F1/F2/M1

Nominal Value: 1g 2g 5g 10g 20g 50g 100g 200g 500g 1kg 2kg 5kg 10kg 20kg

Styles: Cylindrical, Rectangular, Slotted, Hook, Ring etc.

Application

Calibration for scales, balances, testing or other weighing products.

Advantages

Brass weights are essentially non magnetic, but can be effected slightly by magnetic fields. Brass weights should not be used as precision reference standards due to daily weight variations with atmospheric air density (air buoyancy), wear and contamination.

Parameter

Brass weights have better short term (daily to monthly) weight stability than cast iron, but will vary with time due to wear and corrosion of the brass and lead adjusting slug. With light use and good storage and handling, they will retain their value to within ½ to ¼ of the original tolerance over many years. As brass is a soft material, regular use will cause the weight value to reduce more quickly through wear. Brass weights are essentially non magnetic, but can be effected slightly by magnetic fields. Brass weights should not be used as precision reference standards due to daily weight variations with atmospheric air density (air buoyancy), wear and contamination. They should not be used to calibrate precision balances. Brass weights should be re-calibrated annually.

Individual Weights
Nominal
Value
Tolerance
(mg)
1g 1
2g 1.2
5g 1.6
10g 2
20g 2.5
50g 3
100g 5
200g 10
500g 25
1kg 50
2kg 100
5kg 250
10kg 500
20kg 1000
