Calibration Weights are used when calibrating weighing scales and balances to ensure consistent weighing performance and accuracy. Choose from our selection calibration test weights and weight sets ranging from 1 g to 50 kg with stainless steel, cast iron and brass variations available.
Class: F1 F2 M1
Material: Stainless Steel, Brass, Chrom Plated, Cast iron
Style：Rectangular
Nominal value: 500g-50kg
Applicable Place: Laboratories, Pharmaceutical Factories, Scales Factories, etc. Applications：Calibration for scales, balances or other weighing products.
Stainless steel is good in resistance to weak corrosive media such as air, steam, water and chemical etching media such as acid, alkali and salt. The weight made with this material is also resistant to corrosion by corrosive media such as air, steam, water, and chemical etching media such as acid, alkali, and salt. It extends service life and improves the accuracy of weights.

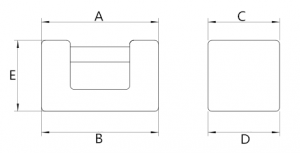

Dimensions information of this style:
|
Nominal Value |
A |
B |
C |
D |
E |
|
500g |
61 |
61 |
40 |
40 |
38 |
|
1kg |
88 |
88 |
50 |
50 |
44 |
|
2kg |
100 |
100 |
60 |
60 |
64 |
|
5kg |
150 |
150 |
75 |
75 |
84 |
|
10kg |
190 |
190 |
95 |
95 |
109 |
|
20kg |
230 |
230 |
115 |
115 |
139 |
|
50kg |
300 |
300 |
150 |
150 |
190 |
