Adjustable digital filtering neutralizes vibrations produced at work environment
Flexible calibration with 2 standard calibration and 5 linear calibration for higher accuracy
Flexible Batching modes:insufficient filling,manual and auto discharge,batch loop frequency/weigh/ accumulations
Equipped with RS-458 or RS-232 serial interface for remote display,PC,PLC, and HMI
All function setup and calibration can be done through the keyboard or RS232/RS458 Modbus RTU
Fast 120 times A/D sampling rate perfect for high speed motion batching control
Internal 24 bits A/D resolution
Embedded instrument can be used in the control of various intelligent weighing equipment.
Integrated instrument for controlling various intelligent weighing devices

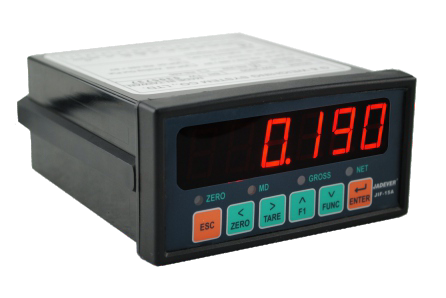

| Model | JIF-15A |
| Built-in interface | Rs232(Module RTU and ASCII) |
| Display | 6 weight digits weight;7 segments 0.56″high red LED |
| Dimension(mm) | 118(L)*96(W)*48(H) |
| Status indicators | Final,Sp3,Sp2,Sp1,Z,Band,HI/OK/LO,MD(Stable),Zero,Net,Gross |
| Operation Temp | -10℃～+40℃(+40℉～104℉） |
| Min.Readability | x1,x2,x5,x10,x20,x50 |
| Loadcell ecxitation | DC5V±5%,120mA(up to 8*350Ω Loadcells) |
| Memory | Calibration parameters and function settings are saved into EEPROM |
| Input sensitivity | 0.12μV/d and up to 1/60000 d |
| Max.Mewasured Voltage | -1mv ～ 39mv |
| AD Conversation/Rate | △-∑;120 times/sec |
