Easy to read large LCD display with green LED backlight
Both stainless steel and ABS structure are available
Auto shut off for power saving
Zero/Tare/Weighing/Simple counting/Percent weighing/Net/Gross
Accumulation/Serial No./Check weighing/OK printing function
Options: 1xRelay interfaces,2xRS-232 interface,U-KEY connector /Blue Tooth 2.0/Blue Tooth serial port
JIK indicator is the solution to your weighing indicator applications that require multiple functions,rugged construction,comprehensive yet intuitive software and multiple connectivity options
Weighing Display System for Various Scales, Bluetooth Weighing System, Forklift Weighing System, etc.
Large screen display font, stainless steel and ABS dual material optional, high precision, fast response, wide application

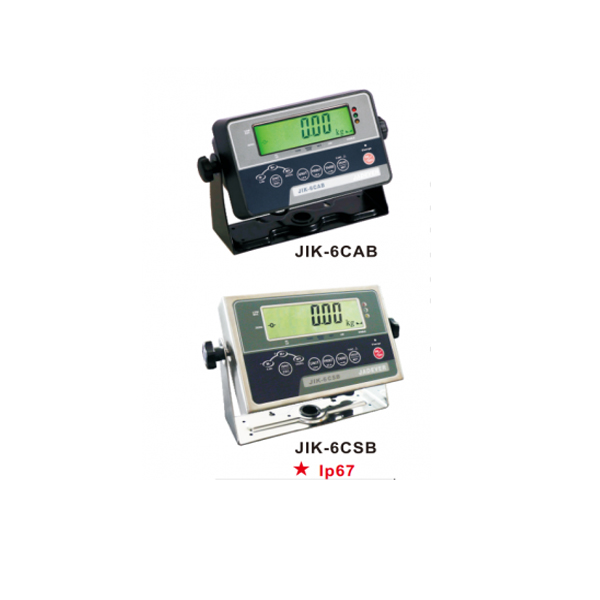

| Model | JIK-6 CAB | JIK-6 CSB |
| Housing | ABS | Stainless steel |
| Resolution | 1/30000 | |
| Weighing units | kg/lb/g/pcs/% | |
| Display | 6digits,30mm digit height,LCD display with green LED backlight | |
| Dimension(mm) | 250x150x90 | |
| Weight | Net weight:2.5kg,Gross weight:2.93kg | Net weight:3.03kg,Gross weight:3.46kg |
| Power supply | 9V/1A adapter,or 6V/3.2Ah Rechargeable battery | |
| Load cell excitaion | DC 5V,Up to 8×350 ohm load cells | |
