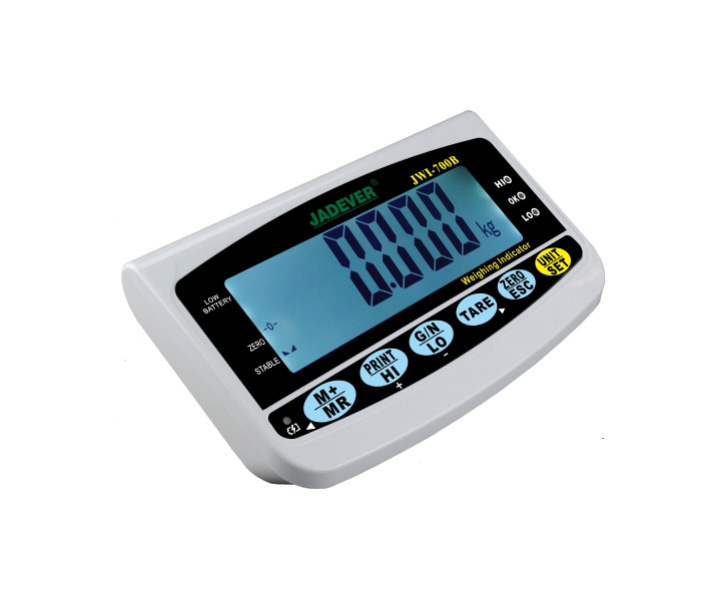

JWI-700B weighing indicator

Attractive outline design with durable ABS housing

Bright LCD display with white backlight

Adjustable capacities,resolutions and parameters

Supports up to eight 350 ohm analog load cell

Low battery indication with unique charging lamp





Features and Specifications

Up to 1/15000 resolution

Zero/Tare/Weighing/Simple counting/Net & Gross Weight/Check weighing function

Auto shut off/Auto backlight

Adjustable filtering level for weighing under various conditions

RS-232/Relay interface/U-KEY connector/Blue Tooth 2.0/Blue Tooth serial port/USB Module/USART(optional)

Application

Ideal for application in production,packaging,warehouse,inventory,shipping and receiving areas

Advantages

ABS main body, LCD display, fast start-up, with automatic zero adjustment and software filtering function.

Parameter

Model JWI-700B
Resolution Up to 1/15000
Weighing Units %,t,lb,oz,pcs,kg
Display 6 digits,51mm×19mm of digit size, large LCD display with green backlight
Dimension(mm) 274x170x117
Power supply AC 110V-220V/Rechargeable battery(6V/4 A)
