Weights suitable in legal metrology and industrial applications; particularly suitable for the calibration of weighbridges and high capacity systems.
The M1 precision class allows for the use of these weights for the check and calibration of scales and class III weighbridges up to 10000kg.

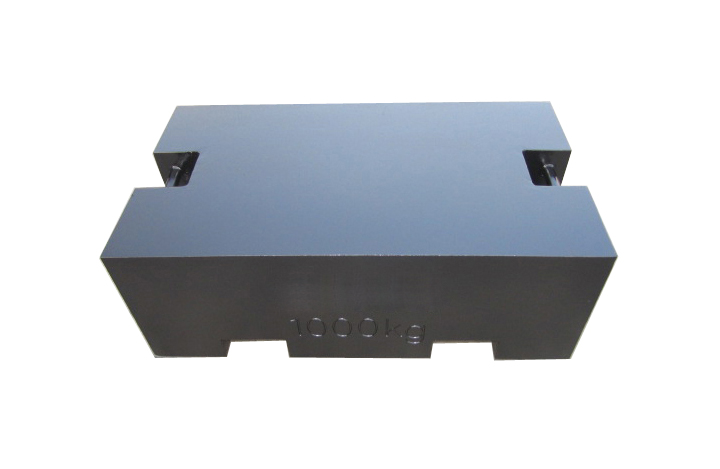

Nominal Value: 100kg, 200kg, 500kg, 1000kg 2000kg 5000kg
Class: M1/M2
Material: Cast Iron, Steel Plated with cast iron
It can be used for calibration of load cell, weighbridge, platform scales, truck scales, floor scales, animal scales, counting scales, bench scales and so on. Mainly used for industrial calibration.
Lower cost, custimized shape suitable for each demands.
| OIML | |||||
| Denomination Metric |
Tolerance | ||||
| M1 | M12 | M2 | M23 | M3 | |
| 5000kg | 250000 | 500000 | 800000 | 1600000 | 2500000 |
| 2000kg | 100000 | 200000 | 300000 | 600000 | 1000000 |
| 1000kg | 50000 | 100000 | 160000 | 300000 | 500000 |
| 500kg | 25000 | 50000 | 80000 | 160000 | 250000 |
| 200kg | 10000 | 20000 | 30000 | 60000 | 100000 |
| 100kg | 5000 | 10000 | 16000 | 30000 | 50000 |
| ASTM E617-13 | ||
| Denomination Metric |
Tolerance | |
| Class 6 | Class 7 | |
| 5000kg | 500g | 750g |
| 3000kg | 300g | 450g |
| 2000kg | 200g | 300g |
| 1000kg | 100g | 150g |
| 500kg | 50g | 75g |
| 300kg | 30g | 45g |
| 200kg | 20g | 30g |
| 100kg | 10g | 15g |
