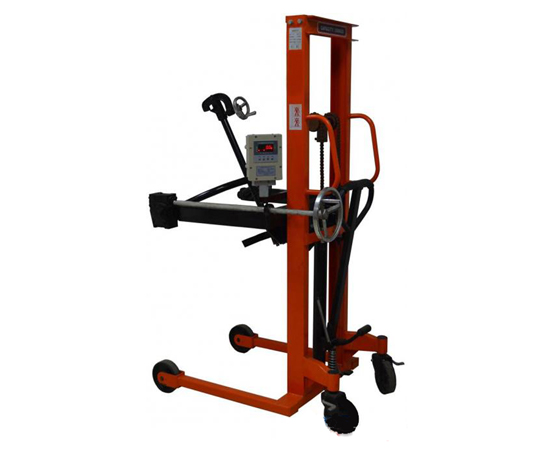

The barrel scale has reasonable structure and are convenient to use. It is suitable for loading, unloading, handling and stacking of barrels in factories, workshops, warehouses and oil depots. When the barrel is lifted, it can work 180 degrees in the air and stay in operation. It is especially suitable for pouring materials or ingredients in chemical and food workshops. It’s a new type of multi-purpose drum loading and unloading machine.
It integrates barrel handling, lifting, overturning and weighing.
The "C" steel portal frame manufactured by special rolling process is durable and stable in weighing.
Flip 180 degrees to achieve adequate feeding
High-quality cylinder, fast lifting speed, lifting height can reach 1.5 meters.
It can be equipped with weighing electronic scale with functions of zero setting, peeling and cleaning.
Applicable to chemical industry, food workshop, dyestuffs, coatings, adhesives, petroleum, edible oil and other fluids, liquid handling, loading and unloading, pouring, etc.
Select high-quality hydraulic pumping stations, strong power, maintenance-free batteries, durable power barrel carrier has simple design, tapping or full hoop structure, suitable for steel and plastic oil drums, easy to operate and labor saving.
| Product Specification Parameters | |||
| Product Name | Scale of barrel Carrier | ||
| Model | YCS series | Capacity Range | 300kg,350kg,500kg |
| Height Elevation (optional) |
1.5m,2m,2.5m,3m | Indexing value | 100g |
| Flip mode | Motor-driven,Manually push | Hoop holding mode(Optional) | Hook type, hold type, hook dual-purpose |
| Overall Length | 1190mm | Overall Width | 890mm |
| Overall Height | 2100mm | Self-weight | 190kg |
| Wheel Dimension | 180×50(mm) | Internal width of foreleg | 640mm |
| External width of foreleg | 800mm | Suitable oil drums dimension | 200L(55 gallon) |
| Operational Technical Parameters | |||
| Accuracy level | LevelⅢ | Working Power | 220V/AC 49Hz～51Hz |
| Safe overload | DC power | 6V Built-in battery | |
| Operational Environment Temperature | Relative Temperature | <95%RH | |
| Other Accessories | Operational Instructions/Warranty Card/Certificate | ||
| Installation Explanation | Installation and commissioning fish before leaving factory,Ensure that the consignee can use it properly | ||
